Application Sites

  • Cardiac
  • Superficial
  • Abdomen
  • Lung

Application Directions

• Emergency inspection: ER, ICU, Wild First Aid, battlefieldrescue.
• Preliminary examination: Ward Inspection, primary clinic examination medical examination, health screening,home care, family planning, etc.
• Visualization tools: invasive intervention guide, surgical and therapy guidance.
• Remote diagnosis, consultation, training: works on smart phone or tablet, easy.

Specification

Model D2CP
Probe Type Phased Probe + Linear Probe
Scan angle/Length Convex 80, Linear 25mm
Frequency Phased Probe 2.2/3.6MHz,Linear Probe 7.5/10MHz
Scan mode B, B/M, Color, PW
Display Depth Phased 90~190mm, Linear 20~100mm
Image Adjust Gain, Depth, DR, Focus, SRI

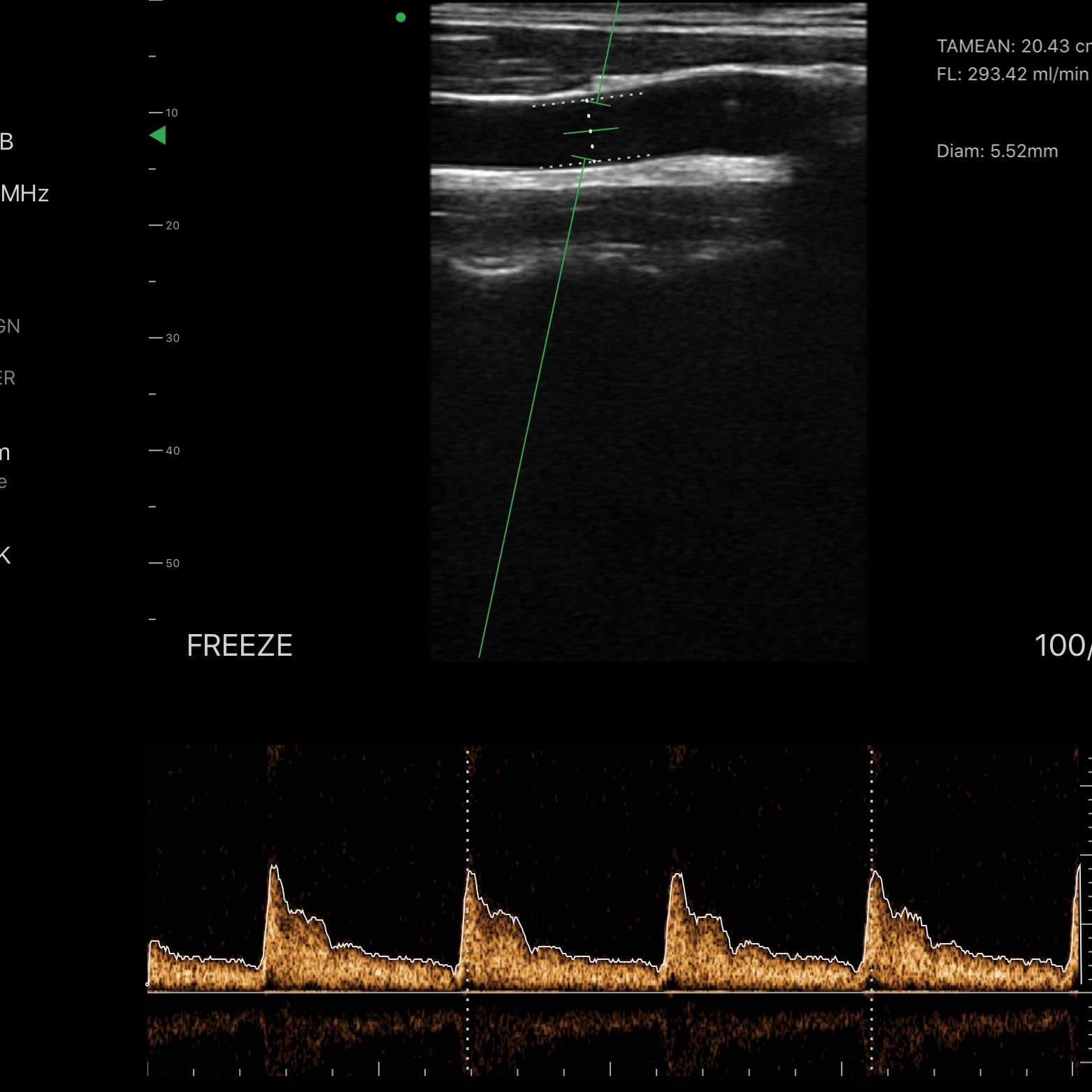

Measure Length, Area, Velocity, HR, S/D, LVIDd, LVIDs, EF, SV, Auto Vessel Measure (TAMEAN, Flow, Diam)
Puncture assist function In-plane Puncture Guide Line, Out-of-plane Puncture Guide Line, Needle Enhance
Image frame rate 24 Frames / Second
Cinplay >50s
Image save JPG, DICOM, mp4
Power Built-in Lithium Battery, Wireless Or USB Charge 1.5h, Continuous Work 1.5h
Working system iOS, Android, Windows
Wifi type 802.11n/2.4G/5G
Dimension 126x53x19mm
Weight 150g

The King Of Cost Performance In Handheld Ultrasound Probe

• Highest cost-effective：Students can afford it, just like buying a cell phone.
• Small and light, easy to carry and operate, very suitable for emergency clinical, hospital ward inspection, community clinical and outdoor inspect.
• Wireless connected to Tablet or Smart Phone , can be conveniently used in surgery without fixing of cables. And by using the disposable protecting cover, it can easily solve the sterilization issue of the probe.

Download Brochure

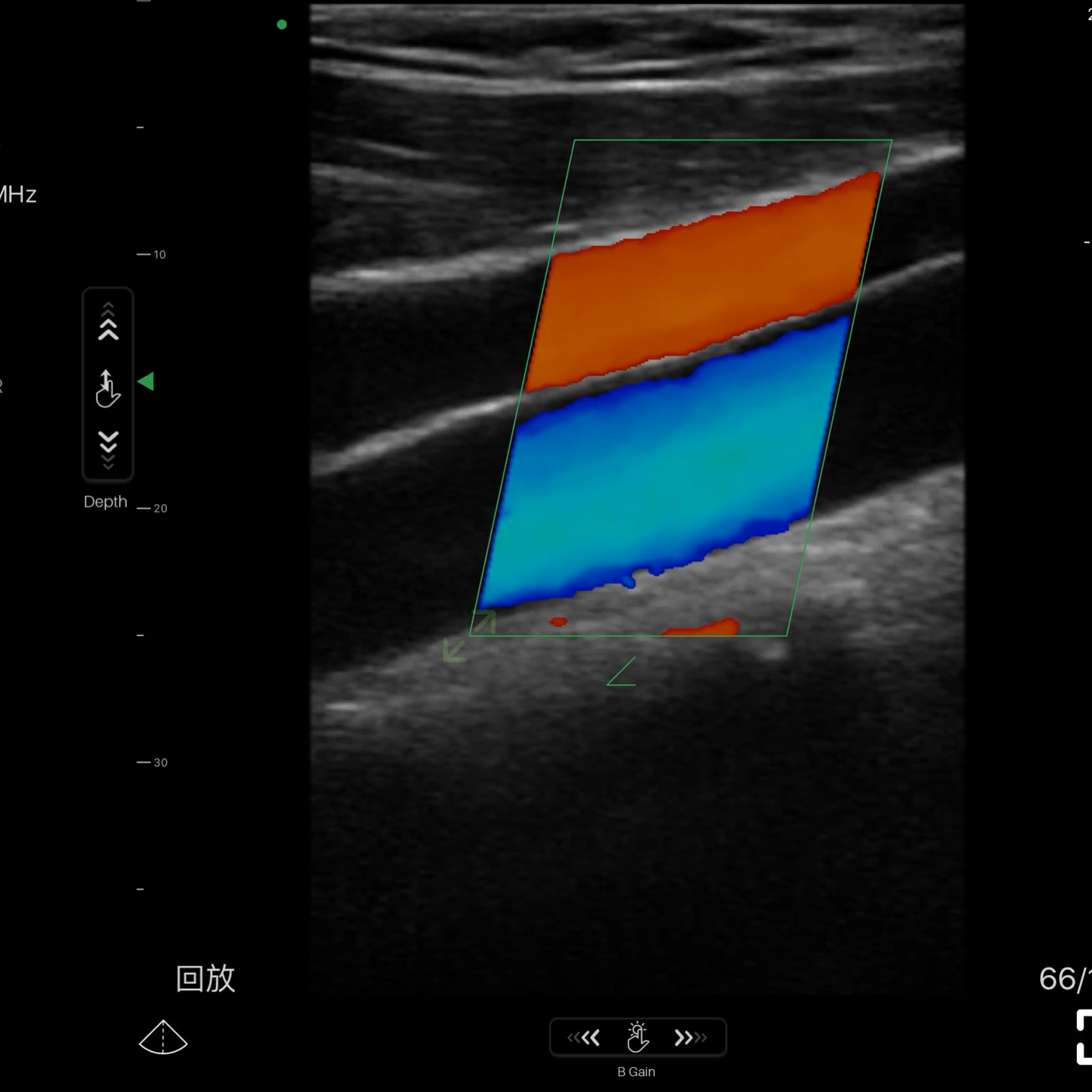

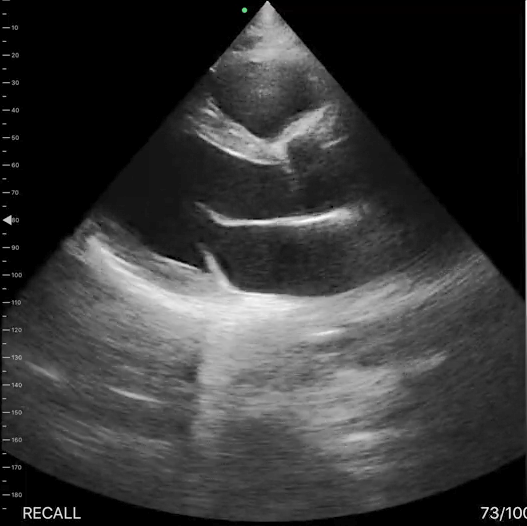

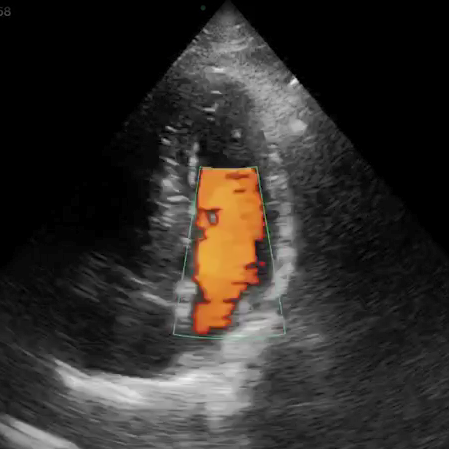

See The Difference Great Image Quality Makes

Easy To Use

  • You can use your own personal device just like your iPhone or iPad to install the app. No need to buy special device.
  • Boot in one second and enter into working status immediately.
  • Simple operation,short learning curve for people without ultrasound experience.
  • High integration, small size, only 150g, can be placed in the pocket, easy to carry.

Both iOS And Android Apps Available

Switch between all your devices with ease.

How It Works

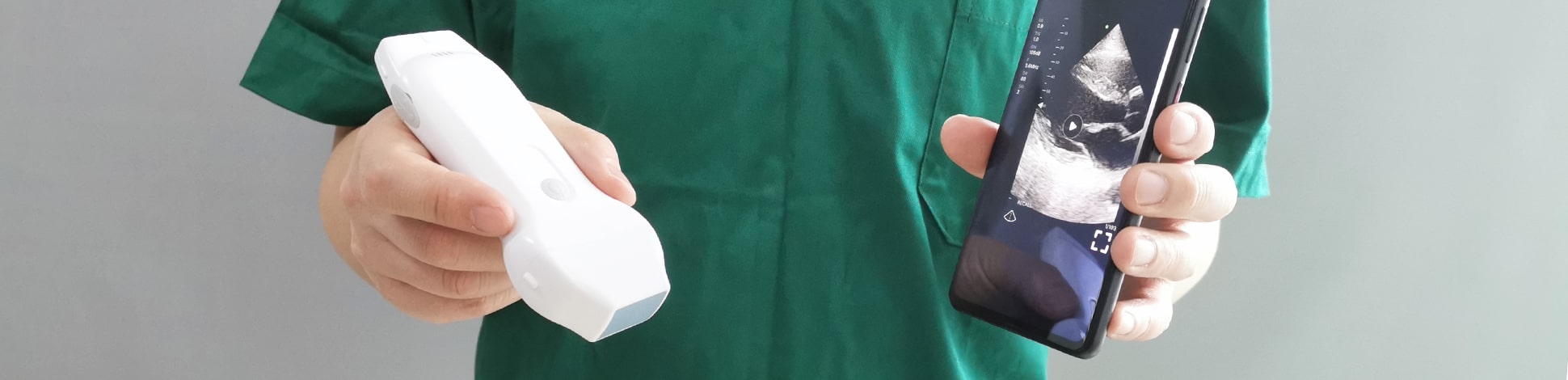

We condense the conventional ultrasound machine into a small circuit board builded-in the probe, small and light，and showing image on app installed in smart phone/tablet through Wifi（internal wifi from probe, no need external Wifi signal）or USB transferring.

  • Make ultrasound easier and more efficient to use.
  • Provide visual images during any clinical procedures.

Waterproof Design

  • In order to avoid cross infection, we specially designed the whole sealing design, which is convenient for you to clean and disinfect.
  • It can reduce medical accidents caused by cross infection, protect you and patients, and reduce hospital related expenses.

Smart Ultrasound

Smallest handheld ultrasound scanner with two probes makes it practical to hold / scan and to store in a pocket.You can carry it from office to office.

  • You can scan from head,heart to foot using the one probe.
  • You can charge the probe with wireless charger.

More Images Of SonoHealth Handheld Ultrasound Probe

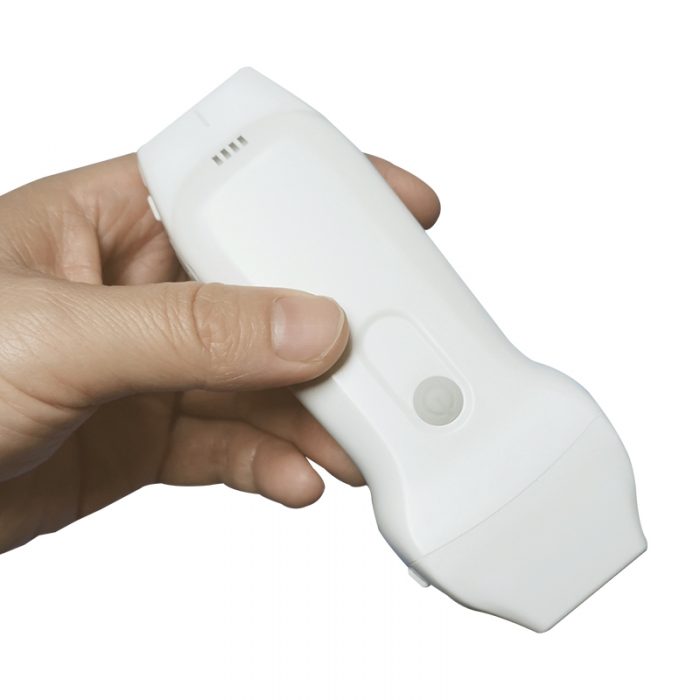

D2CP wireless ultrasound machine
D2CP wireless ultrasound machine
D2CP wireless ultrasound machine
D2CP wireless ultrasound machine
D2CP wireless ultrasound machine
D2CP wireless ultrasound machine

Request For Quotation

Please leave a message to us, we will contact you within 24 hours, thanks.
