Application Sites

  • Small Parts
  • MSK
  • Nerve
  • Vascular access
  • Abdomen
  • Lung
  • Cardiac

Application Directions

  • Emergency Inspection: ER, Ambulance, ICU, Wild First Aid, Battle Field Rescue.
  • Preliminary Examination: Ward Inspection, primary clinic examination medical examination, health screening, home care, family planning, etc.
  • Visualization Tools: Vascular Access, surgical and therapy guidance.
  • Remote Diagnosis, Consultation, Training: Works on smart phone or tablet, easy.

Specification

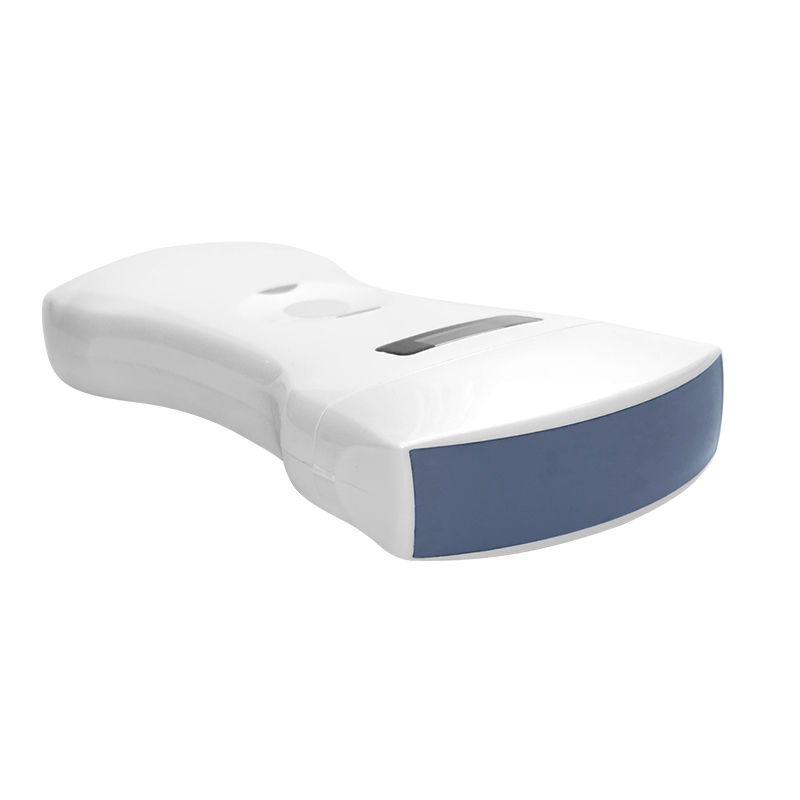

Model D5CL
Display Phone Or Tablet Screen
Probe Type Convex Array + Linear Array
Scan Angle / Length Convex 60, Linear 40mm
Frequency Convex Probe 3.5 / 5.0 MHz, Linear Probe 7.5 / 10 MHz
Scan mode B, B/M, Color, PW
Display Depth Convex 90 ~ 305mm, Linear 20 ~ 100mm
Image Adjust Gain, Depth, DR, Focus, SRI, Harmonic
Measure Length, Area, Velocity, HR, S/D, Obstetrics, Auto Blood Vessel Measurement
Puncture Assist Function In-plane Puncture Guide Line, Out-of-plane Puncture Guide Line, Needle Enhance
Image Frame Rate 20 Frames / Second
Cinplay >50s
Power Built-in Lithium Battery, Wireless Charge 2h, Work 2.5h
Working System iOS, Android, Windows
WiFi Type 802.11n / 2.4G / 5G
Dimension 156x60x20mm
Weight 250g

One Scanner Is Enough

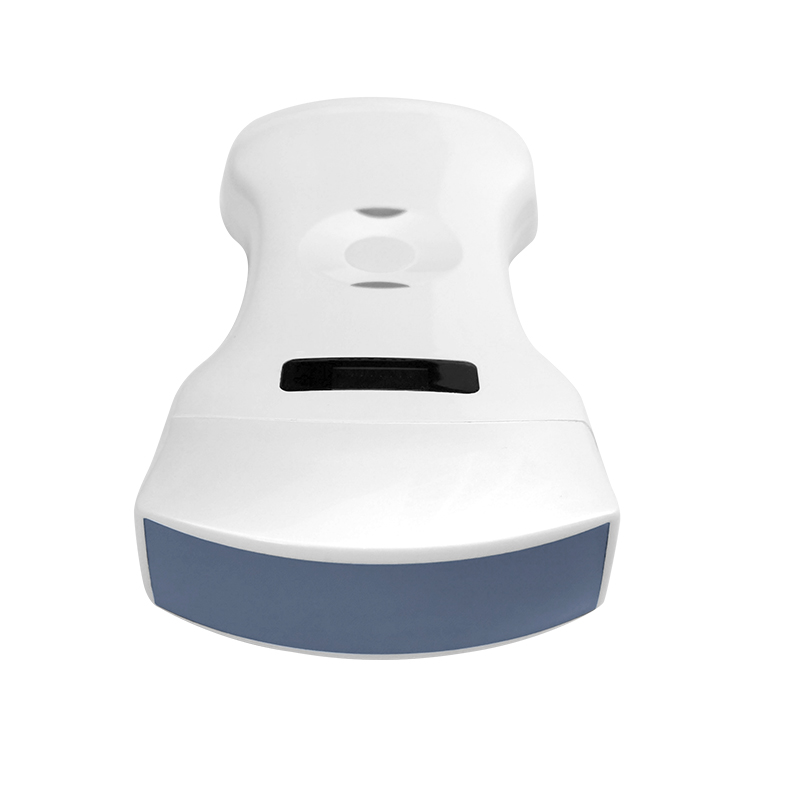

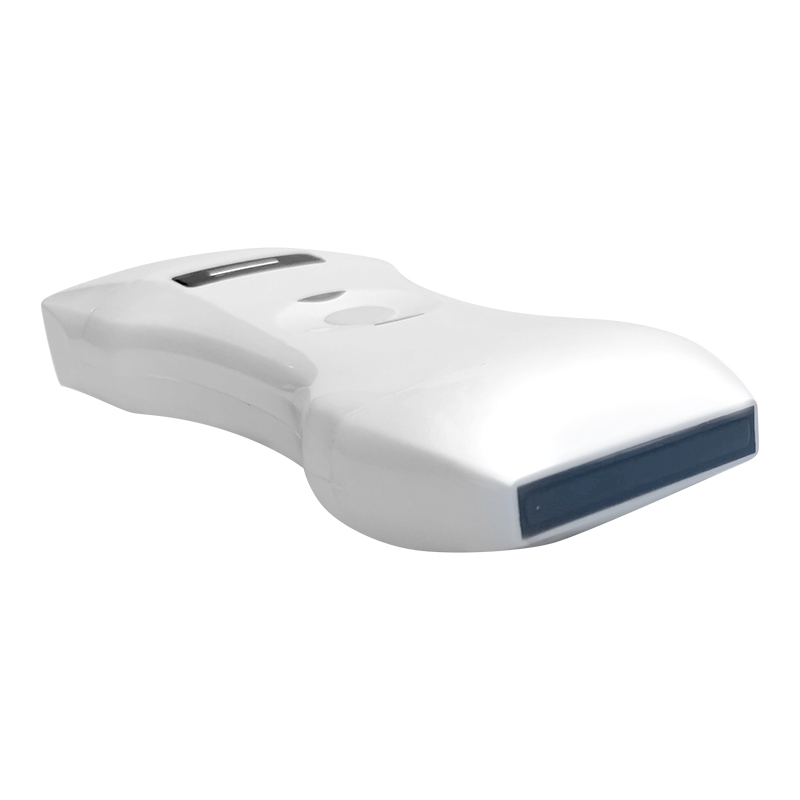

  • Composed of two probes (Integrating three scanning modes: Convex, linear and phased array), which can be applied to multiple applications at the same time, including cardiac examination.
  • High cost-effective, lower cost than buying three separate probe.
  • Small and light, easy to carry and operate, very suitable for emergency clinical, hospital ward inspection, community clinical and outdoor inspect.

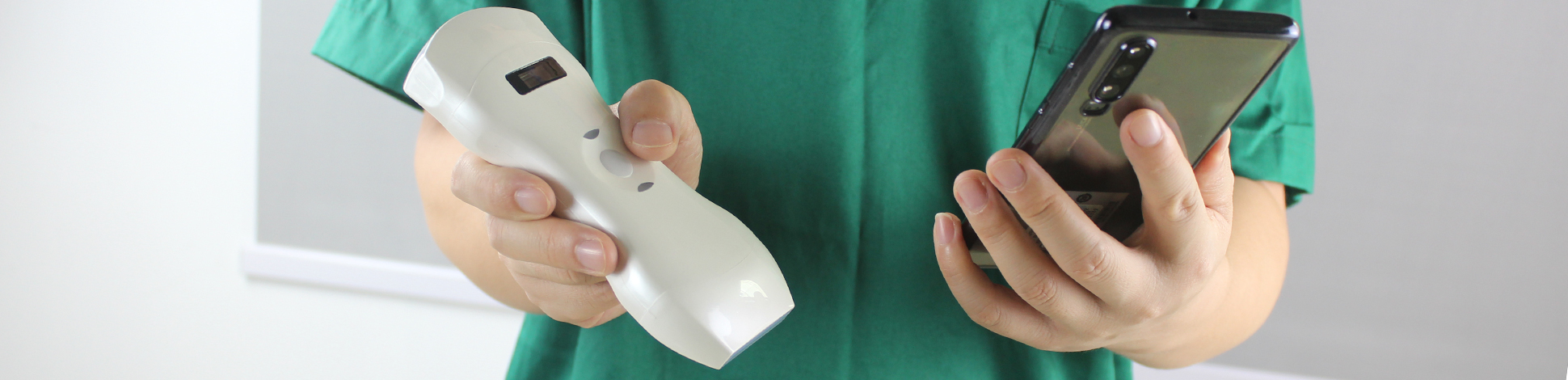

  • Wireless connected to tablet or smart phone, can be conveniently used in surgery without fixing of cables. And by using the disposable protecting cover, it can easily solve the sterilization issue of the probe.
  • For powerful communication capability of the smart terminals, the wireless probe can meet the needs of the telemedicine.
  • Software is free for life.
  • Waterproof design, convenient for sterilization.
Download Brochure

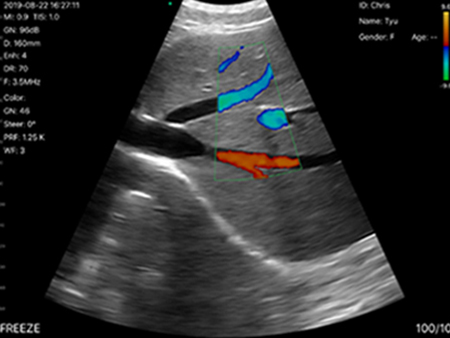

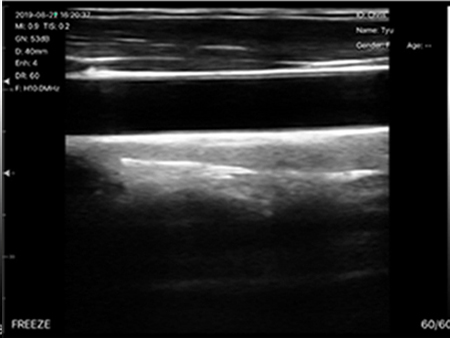

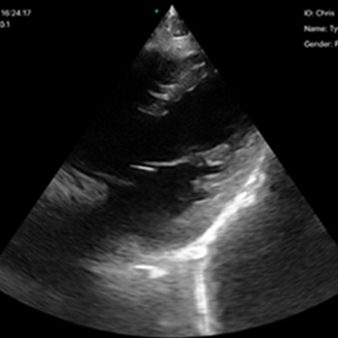

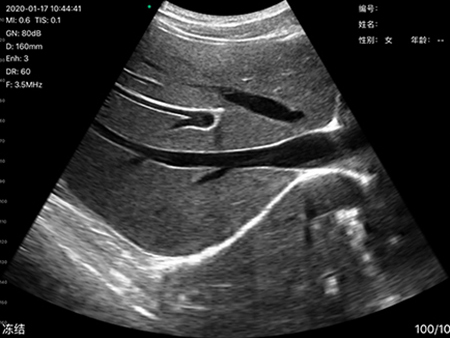

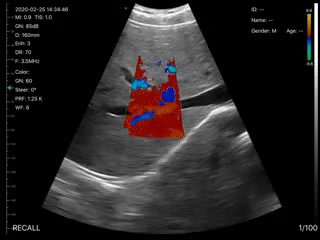

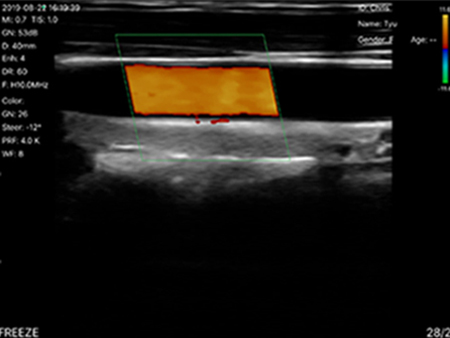

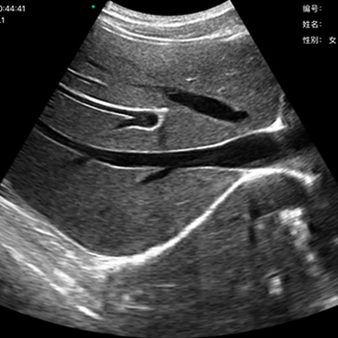

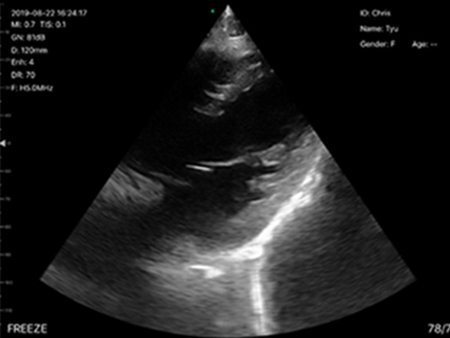

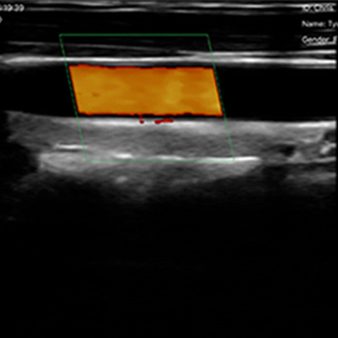

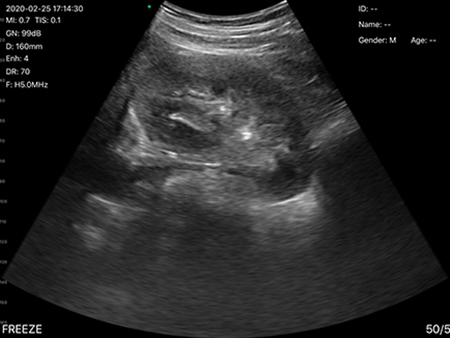

See The Difference Great Quality Images We Made

Easy To Use

On iOS and Android

  • You can do it easily, even if you’re not an ultrasound professional. Just follow:
  • Start scanning within 1 second of starting the handheld ultrasound scanner and launching the MicroVue App.
  • Choose from AI-powered presets for instant adjustments to get a good image. Scanning with SonoHealth Scanner is like using the camera app on your phone.
  • Slipe left and right to change scan modes, gain, slide up and down to change depth, and more.

Both iOS And Android Apps Available

Switch between all your devices with ease.

How It Works

We condense the main unit into a small circuit board builded-in the probe, small and light，and showing image on app installed in smart phone/tablet through Wifi（internal wifi from probe, no need external Wifi signal）or USB transferring.

  • Make ultrasound easier and more efficient to use.
  • Provide visual images during any clinical procedures.

Covid-19

  • Ideal for POCT because of it’s portability and compact size.
  • Ideal for COVID pandemic use when infection control is a concern because that it’s so easy to clean and disinfect.

Smart

  • Small, it is practical to hold / scan and to store in a pocket.
  • It’s the surgeons’ stethoscope.
  • Only one scanner scans the whole body, even if cardiac.

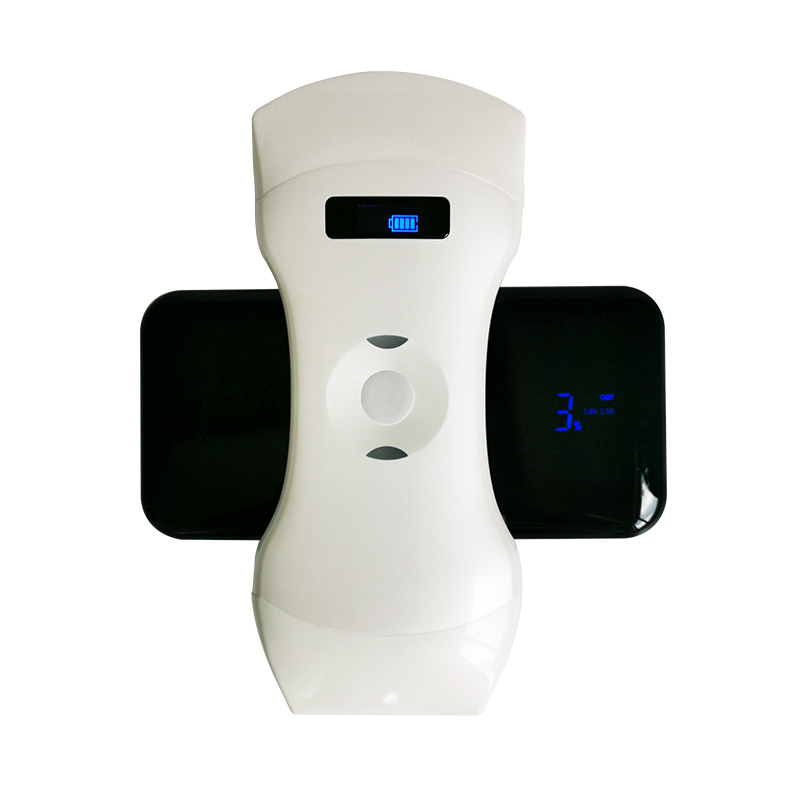

  • Wireless charging anywhere.

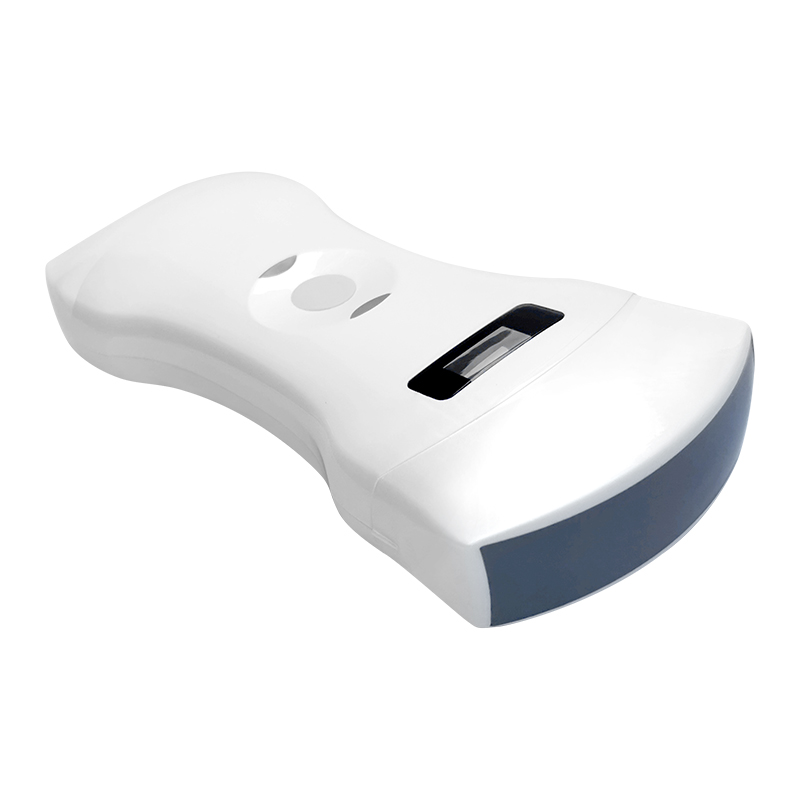

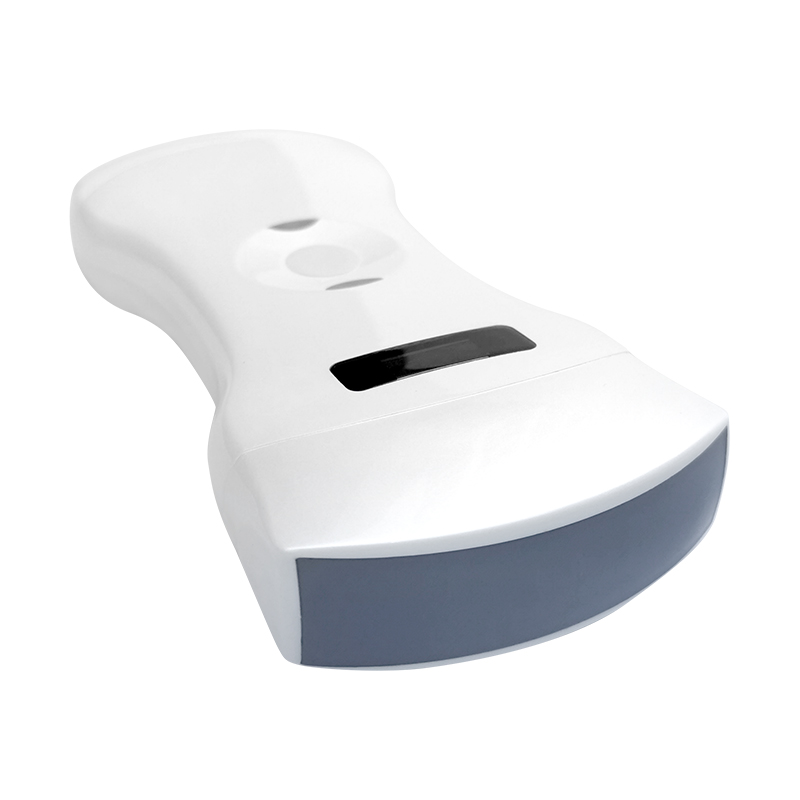

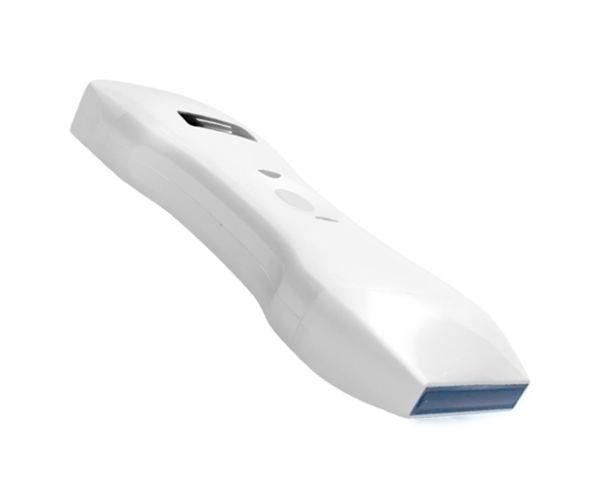

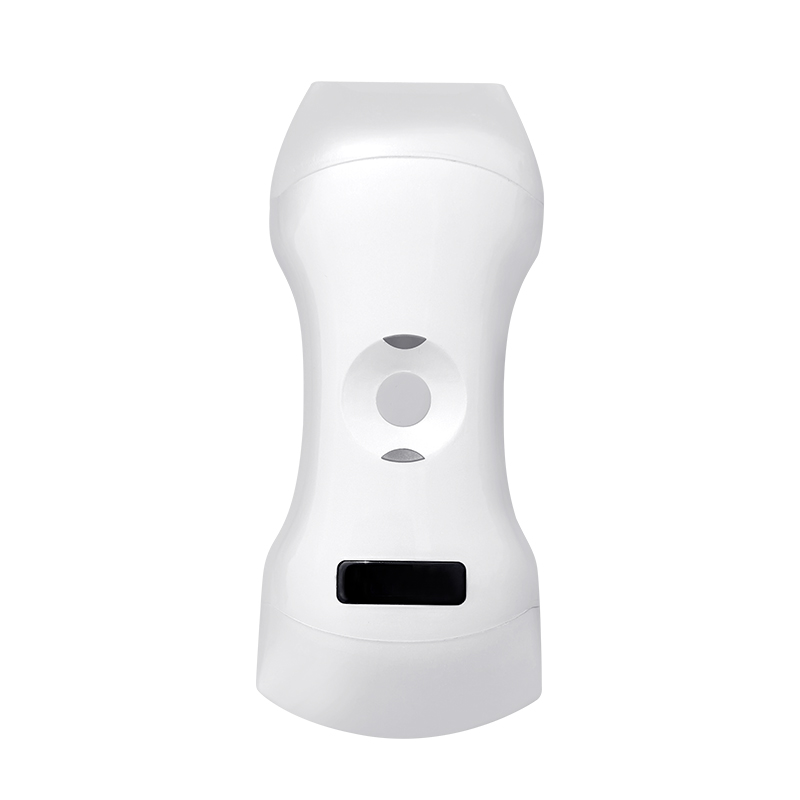

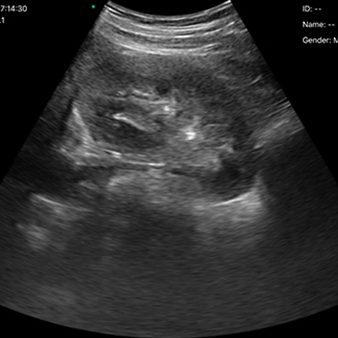

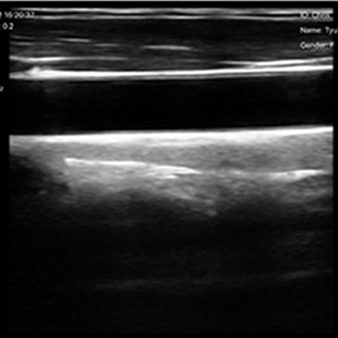

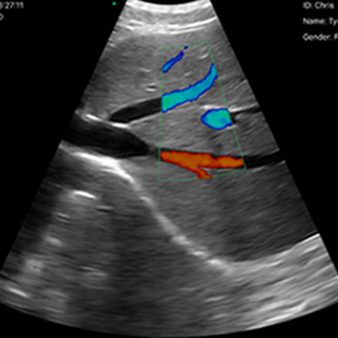

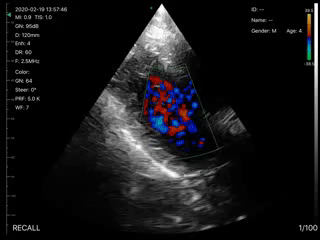

More Images Of SonoHealth Handheld Ultrasound Scanner
