Application Sites

  • OB/GYN

Application Directions

Follicular monitoring.

Specification

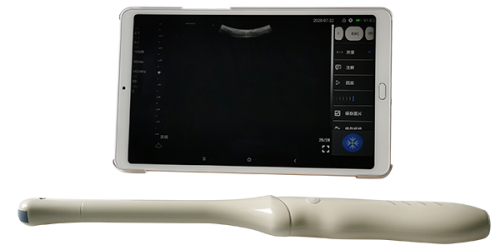

Model P5E
Display Phone Or Tablet Screen
Probe Type Transvaginal Array
Scan Angle / Length 149
Frequency 6/8 MHz
Scan Mode B, B/M, Color, PW
Display Depth 30~115mm
Image Adjust Gain, Depth, DR, Focus, SRI, Harmonic
Measure Length, Area, Velocity, HR, S/D, Obstetrics, Auto Blood Vessel Measurement
Puncture Assist Function In-plane Puncture Guide Line, Out-of-plane Puncture Guide Line, Needle Enhance
Image Frame Rate 20 Frames / Second
Cinplay >50s
Power Built-in Lithium Battery, USB Charge 1.5h, Work 1.5h
Working System iOS, Android, Windows
WiFi Type 802.11n / 2.4G / 5G
Dimension 336x35x28mm
Weight 170g

Special For Follicular Monitoring

  • Low price, individuals can afford to achieve home monitoring, avoid frequent hospital visits.
  • Small and light, suitable for bedside and home monitoring.
  • Wireless, by using the disposable protecting cover, it can easily solve the sterilization issue of the probe.
Download Brochure

See The Difference Great Image Quality Makes

Easy To Use

  • You can use your own personal device just like your iPhone or iPad to install the app. No need to buy special device.
  • Boot in one second and enter into working status immediately.
  • Simple operation,short learning curve for people without ultrasound experience.

Both iOS And Android Apps Available

Switch between all your devices with ease.

How It Works

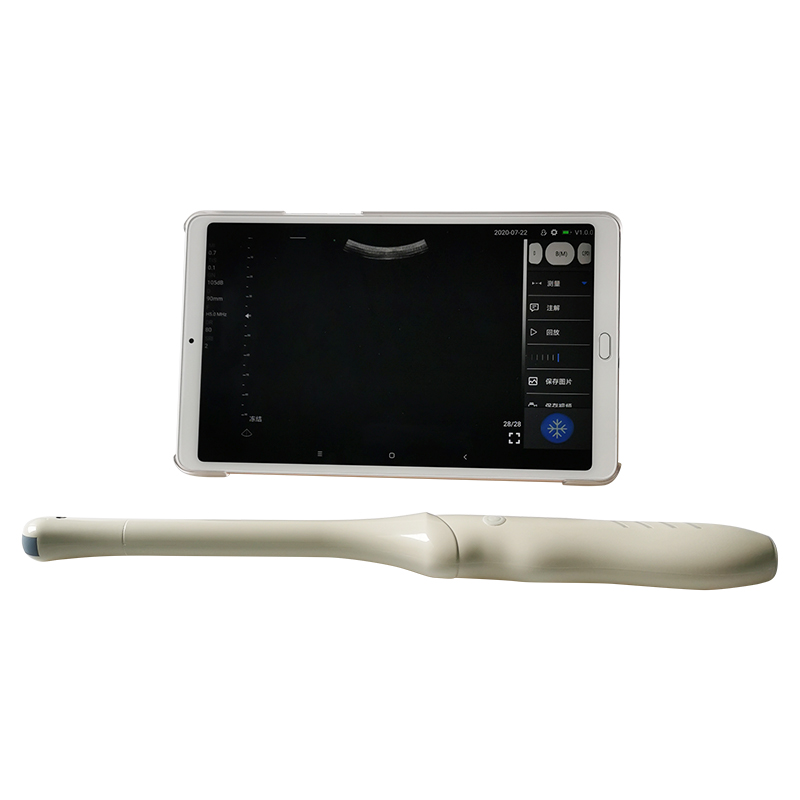

We condense the main unit into a small circuit board builded-in the probe, small and light，and showing image on app installed in smart phone/tablet through Wifi（internal wifi from probe, no need external Wifi signal）or USB transferring.

  • Make ultrasound easier and more efficient to use.
  • Provide visual images during any clinical procedures.

Special

Fully considering the ergonomics, it is very convenient to use, and even can complete the inspection by yourself.

Cleaning And Disinfection

  • Use the recommended disinfectant and clean and disinfect according to the instructions
  • Wireless, small, by using the disposable protecting cover, it can easily solve the sterilization issue of the probe.

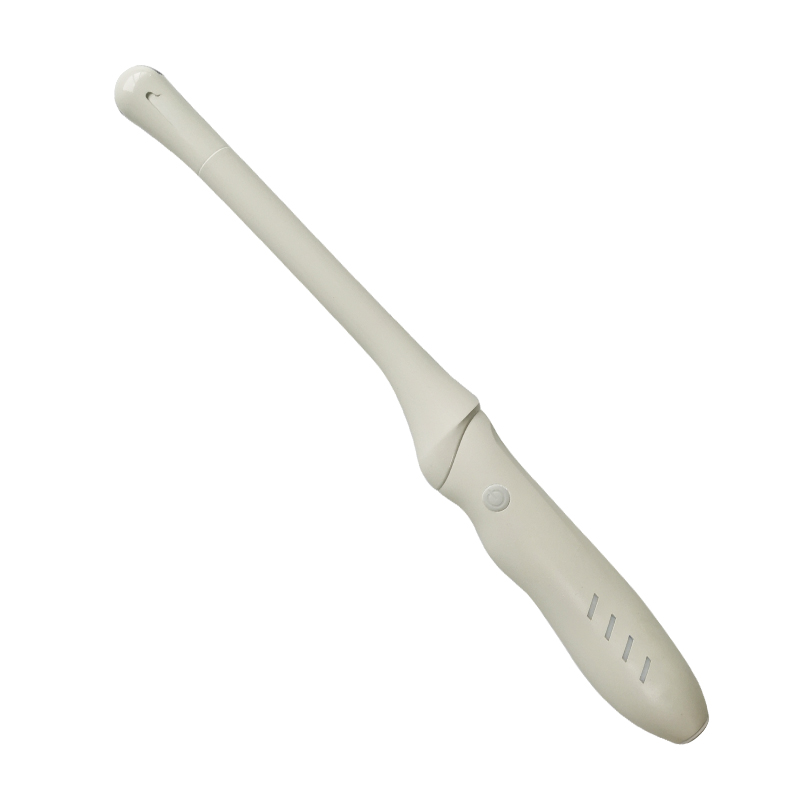

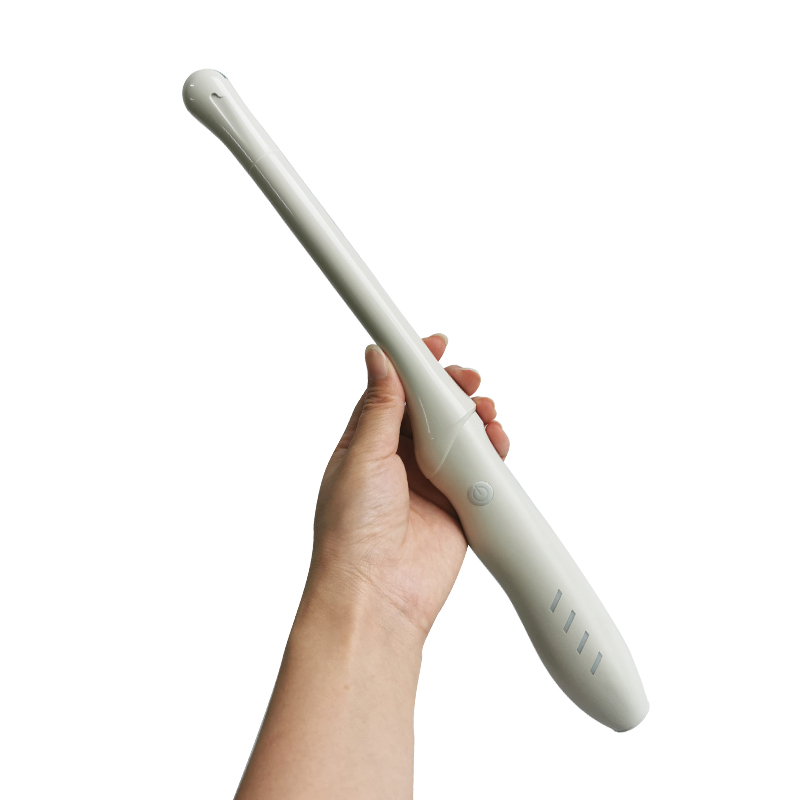

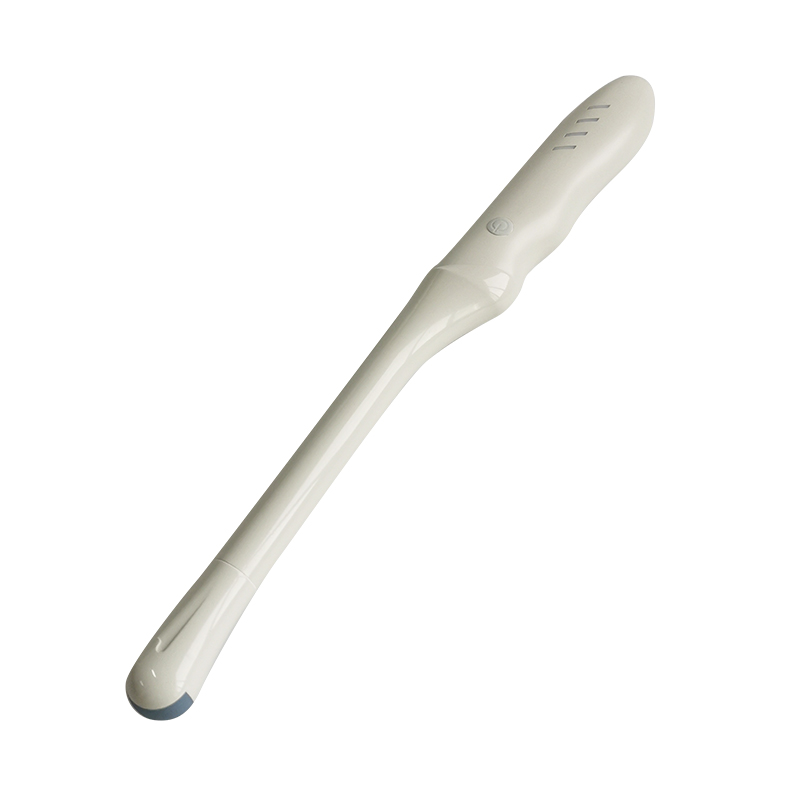

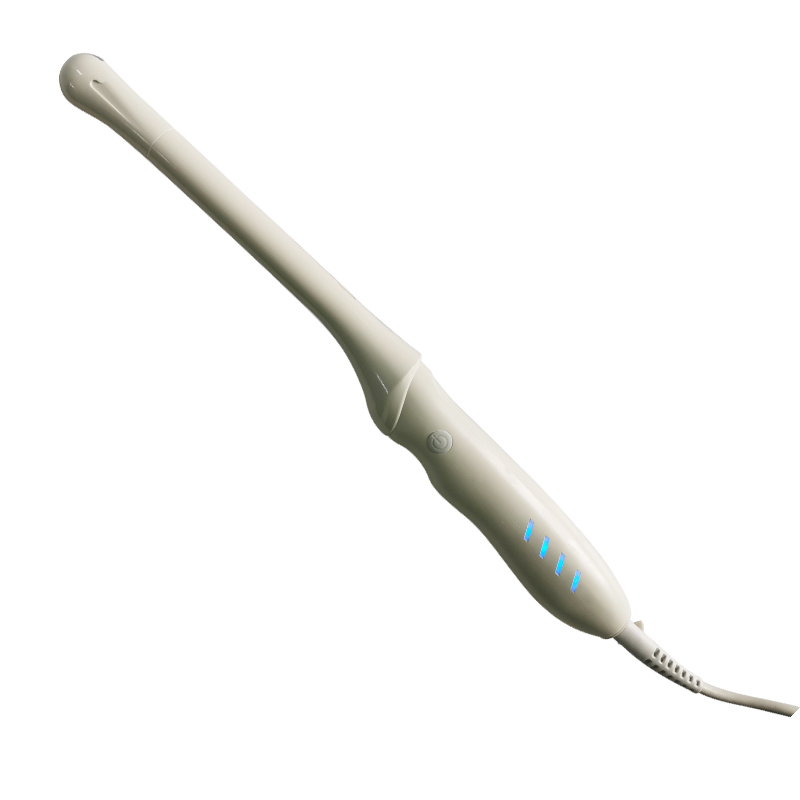

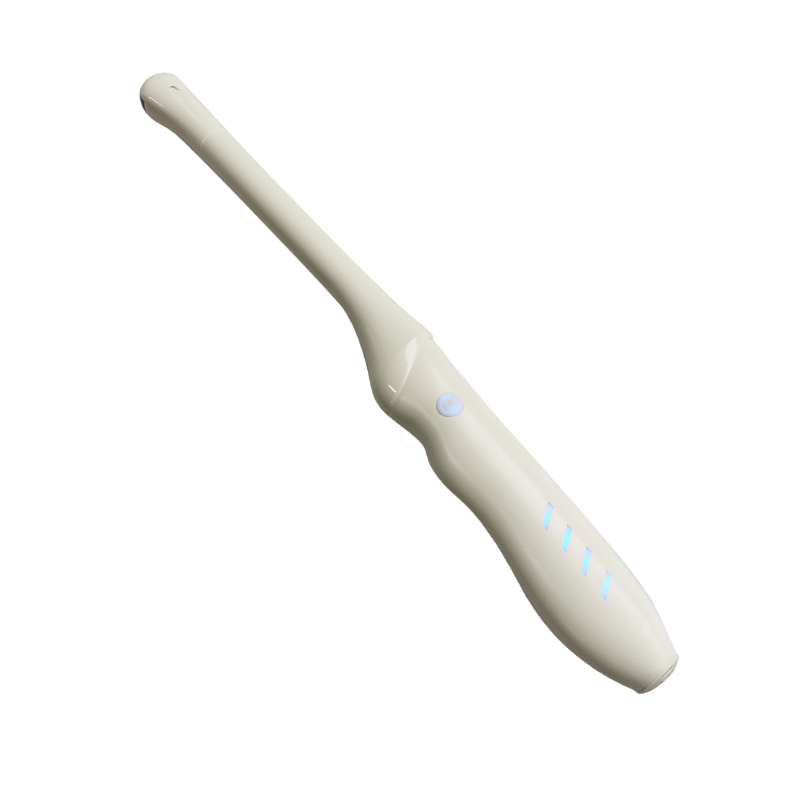

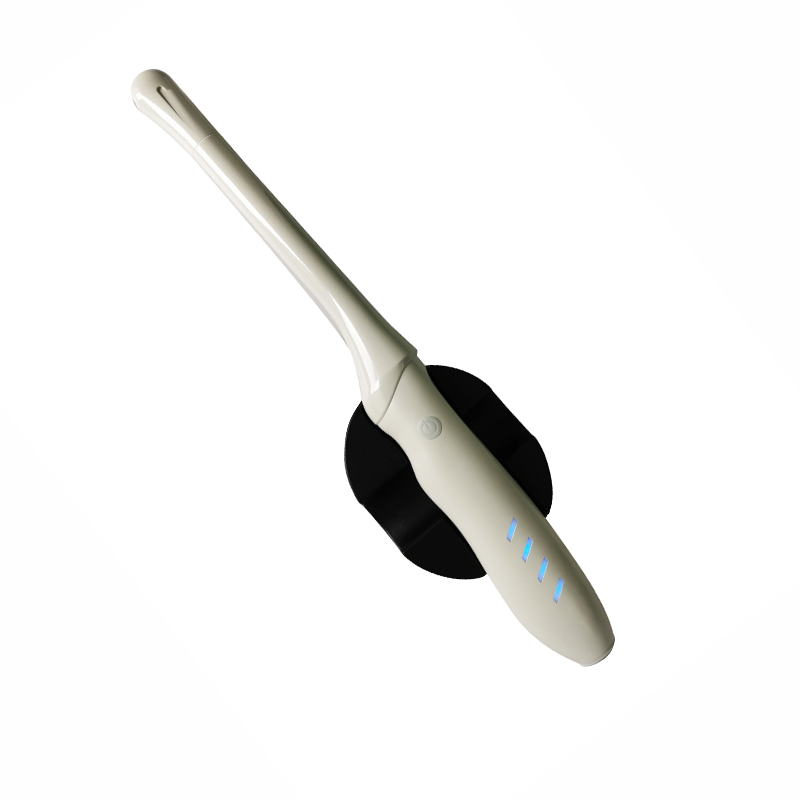

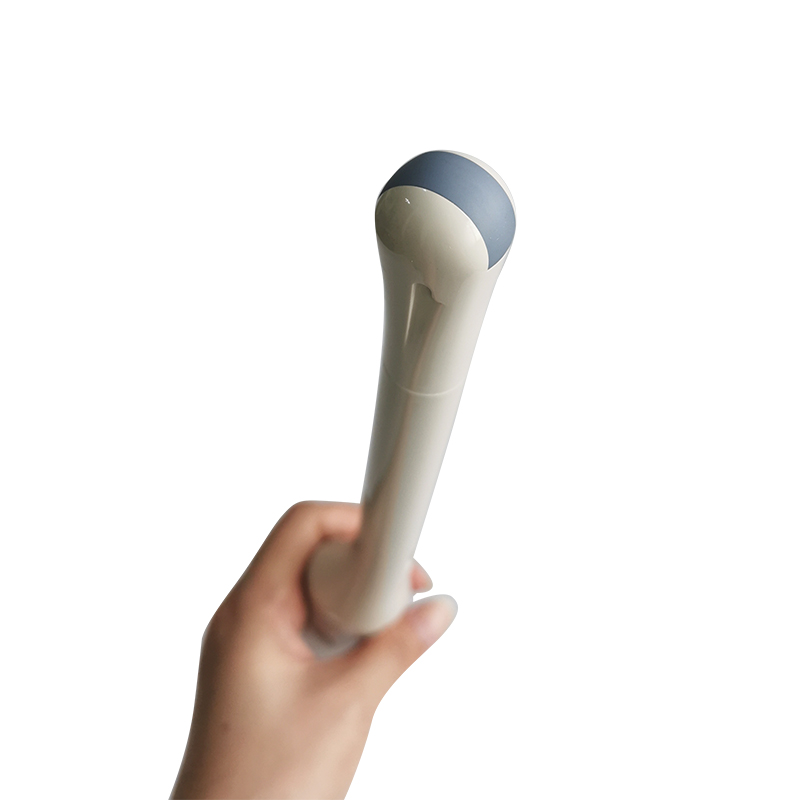

More Images Of SonoHealth Handheld Ultrasound Scanner
