Application Sites

  • Small Parts
  • MSK
  • Nerve
  • Vascular access

Application Directions

  • Medical Students training in college: Visual understanding of human body structure or ultrasound image study.
  • Preliminary examination: Home care, family planning.
  • Visualization tools: Invasive intervention guide, surgical and therapy guidance.
  • ODM/OEM: Integration into other multi-functional medical device.

Specification

Model P5L
Display Phone Or Tablet Screen
Probe Type Linear Array
Scan Angle / Length 40mm
Frequency 7.5/10 MHz
Scan Mode B, B/M, Color, PW
Display Depth 20~100mm
Image Adjust Gain, Depth, DR, Focus, SRI, Harmonic
Measure Length, Area, Velocity, HR, S/D, Auto Blood Vessel Measurement
Puncture Assist Function In-plane Puncture Guide Line, Out-of-plane Puncture Guide Line, Needle Enhance
Image Frame Rate 20 Frames / Second
Cinplay >50s
Power Built-in Lithium Battery, USB Charge 1.5h, Work 1.5h
Working System iOS, Android, Windows
WiFi Type 802.11n / 2.4G / 5G
Dimension 115x60x20mm
Weight 100g

Super Cost-effective Color Doppler Ultrasound

  • Super Cost-effective: Students can afford it, just like buying a cell phone.
  • Small, light, built in battery: You can easily use it anywhere.
  • Remote training and guidance: Based on intelligent terminal, remote training and guidance can be achieved.
Download Brochure

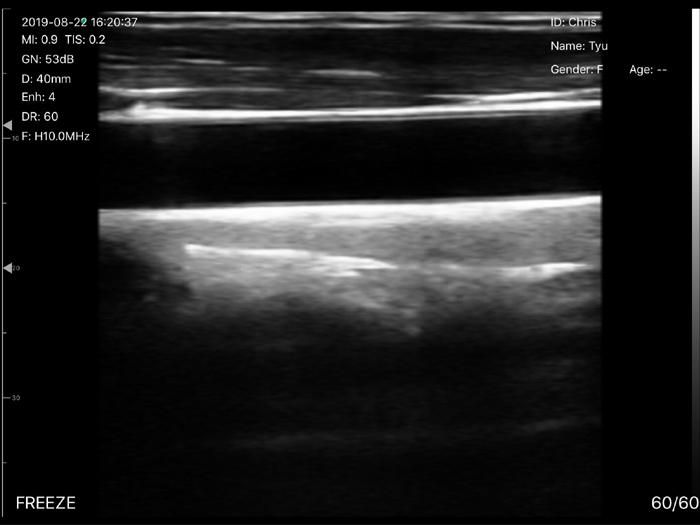

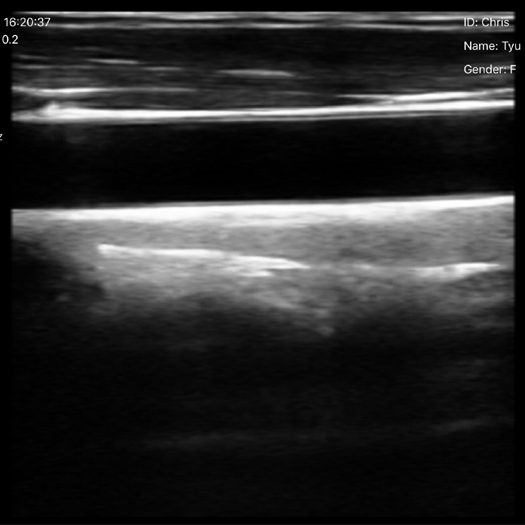

See The Difference Great Image Quality Makes

Easy To Use

  • You can use your own personal device just like your iPhone or iPad to install the app. No need to buy special device.
  • Boot in one second and enter into working status immediately.
  • Simple operation, short learning curve for people without ultrasound experience.
  • High integration, small size, only 120g, can be placed in the pocket, easy to carry.

Both iOS And Android Apps Available

Switch between all your devices with ease.

How It Works

We condense the main unit into a small circuit board builded-in the probe, small and light，and showing image on app installed in smart phone/tablet through Wifi（internal wifi from probe, no need external Wifi signal）or USB transferring.

  • Make ultrasound easier and more efficient to use.
  • Provide visual images during any clinical procedures.

OEM/ODM

According to your design requirements, we can:

  • Integrate our ultrasound module into your medical system.
  • Provide API to support your secondary development.
  • Help you with secondary development.

Smart

  • Small,is practical to hold / scan and to store in a pocket.
  • It’s the surgeons’ stethoscope.

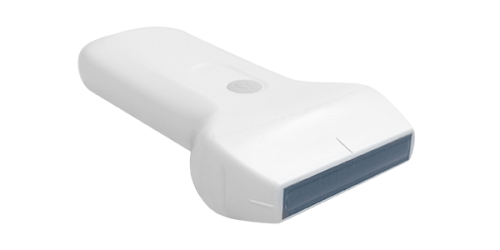

More Images Of SonoHealth Handheld Ultrasound Scanner
